For helmet mould, it’s important to know well the features of product.
Safety helmet features:
1, material selection :(cap shell) FRP safety helmet selection of polymer unsaturated resin and cotton fiber fabric, accurate ratio. After the composite material is made, is the current head protection products "safety helmet" the most high-grade material;
2, production process :(cap shell) selection of high-precision mold, high tonnage hydraulic machine, computer control temperature pressing molding;
3, outstanding advantages :(cap shell) shell mass density, high rigidity, low thermal conductivity, workers wear a sense of cool;
4, standard performance: in line with GB 2811-2007 standard with anti-static, flame retardant, insulation, high and low temperature resistance, anti-aging performance;
5. Technical basis :(cap shell) the surrounding brim is greater than 10mm to protect the ear of the wearer. The front edge is larger than 25mm to protect the wearer's facial features;
6, hat lining design :(hoop) according to the wearing height of 85mm design, helmet mold, mold processing plant, just in the upper part of the wearer's ear, and comfortable;
7, hat lining material selection :(lining) high and low pressure high-quality plastic, precise ratio injection molding, good softness and strong weather resistance;
8, wear :(safety helmet) in order to facilitate the wearer's head circumference, choose "press" and "knob" two devices, can freely adjust the degree of loosenity;

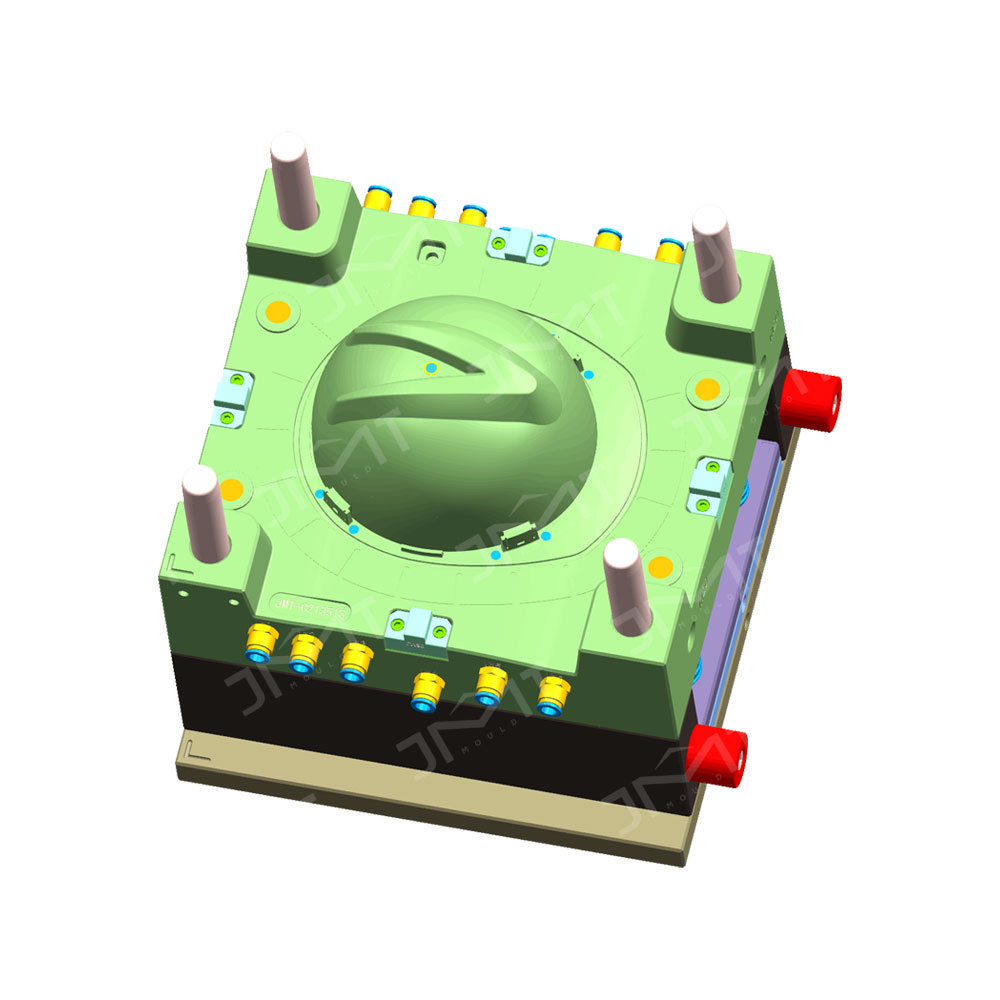

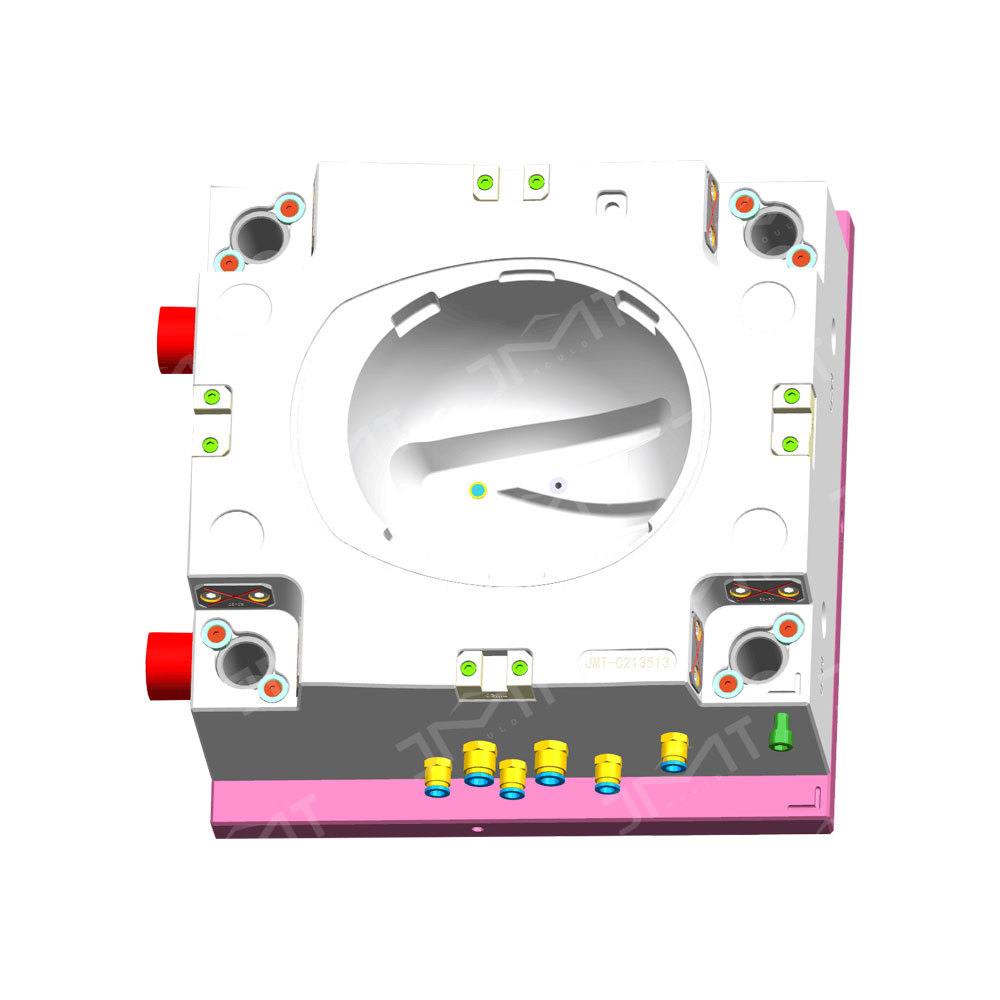

Part Name
|

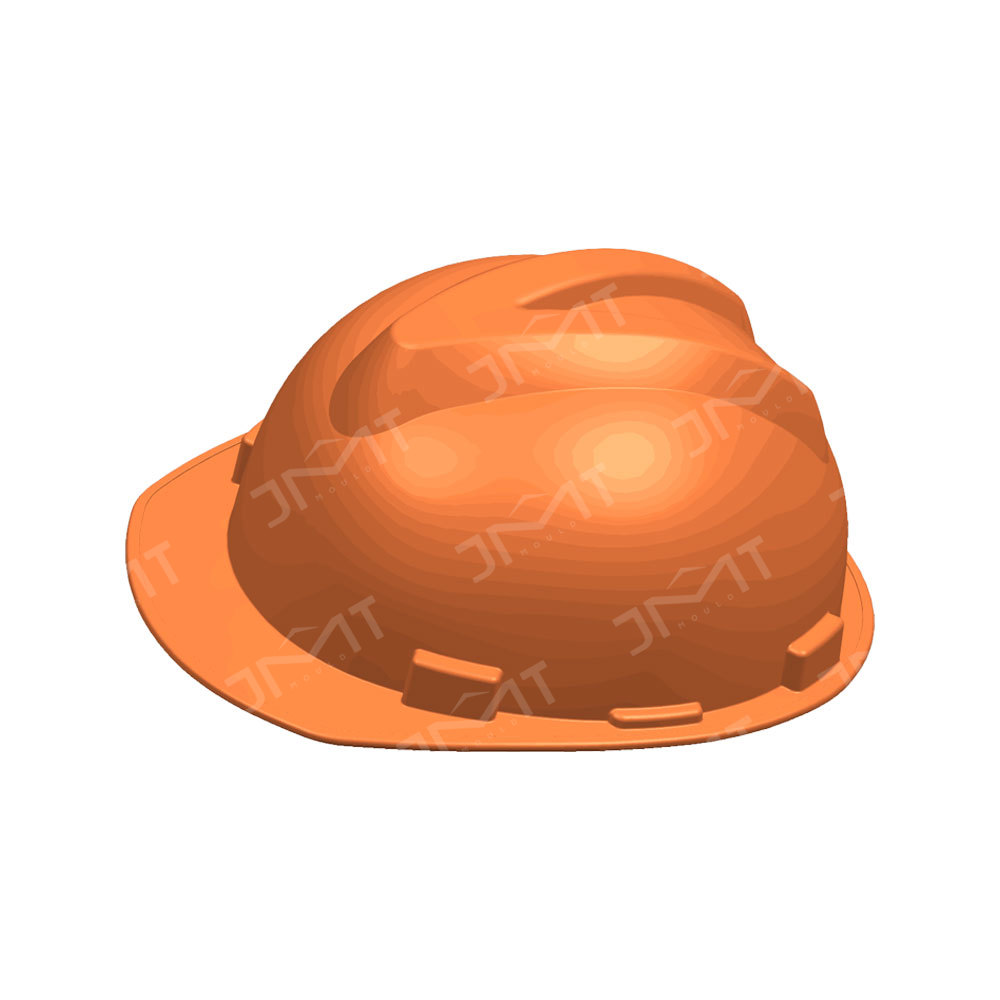

Plastic helmet Mould for worker
|
Plastic resin
|
>PP<
|
Mould cavity steel
|
1.2738
|
Mould Core steel
|
1.2738
|
Gate system
|
Hot runner
|
Manufacture time (day)
|
60 DAYS
|
Mould life
|
1,000,000
|
Cooling line connector type
|
DME NS350 SERIES quick coupling, excellent cooling system design, cooling design will as many as possible to cooling best
|
